Specifications:
1,Working medium:water or similar fluids
2,Body material:Brass
3,Paddle material:Stainless steel
4,Max.Working pressure:120℃
5,Max.Working pressure:13.5Bar
|
Model |
Connection |
Connection |
|
|
|
HFS-25 |
1″-11½NPT |
Screw |
|
|
HFS-20 |
¾″-14NPT |
Screw |
|
|
HFS-15 |
½″-15NPT |
Screw |
|
Electrical Specification
|
Rated Voltage∕ Rated Amps |
A.C.125 ～ 250V |
Power(COSØ) |
|
Non-inductive Current |
12A |
1 |
|
Full Load |
12A |
0．75 |
|
Locked Roter |
72A |
0．45 |

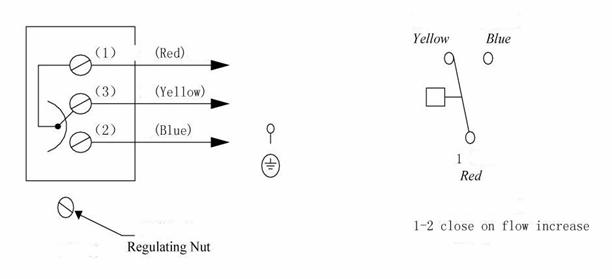

Switch Connection

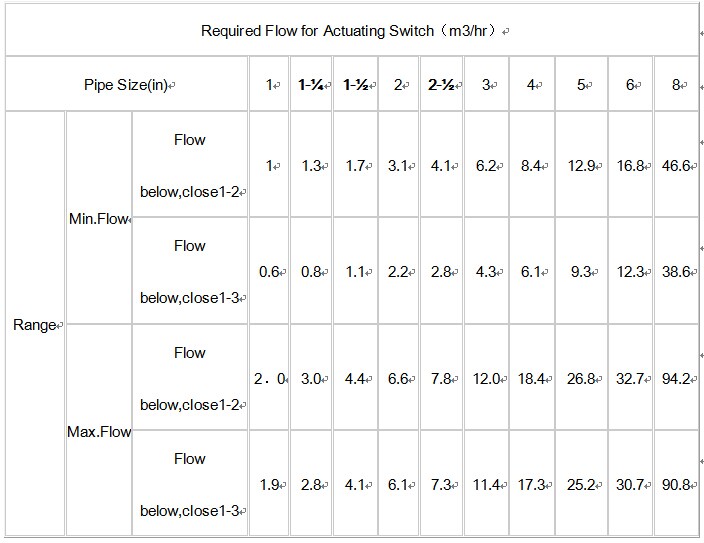

Flow Rate Table
